sinotruk howo Transmission front case AC22100000501
Time：2022-08-31 00:00:00
Hits：503

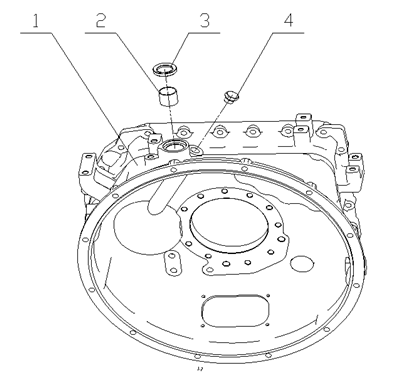

| POS | Number of part | Quantity | Standard specification |
| 1 | WG2220000501 | 1 | Transmission front case |
| 2 | WG2229003030 | 1 | Composite Bushing (DX) 30×34×30 |
| 3 | WG9003073001 | 1 | Skeleton Oil Seal PS 30 45 8 |
| 4 | WG2229000011 | 1 | screw plug |
| POS | Number of part | Quantity | Standard specification |
| 1 | WG2229010013 | 1 | Conversion rocker shaft cover |
| 2 | Q1420816 | 2 | Hex Head Bolt and Spring Washer Assembly |
| 3 | WG2220010501 | 1 | middle shell |
| 4 | WG2229010009 | 1 | platen |
| 5 | Q1420816 | 3 | Hex Head Bolt and Spring Washer Assembly |
| 6 | WG2229010002 | 2 | screw plug |
| 7 | WG2212010001 | 1 | Main and auxiliary box interlock shaft |
| 8 | WG2229010012 | 2 | Segmented auxiliary box fork shaft locking spring |
| 9 | WG2229010008 | 1 | Interlocking spring seat |
| 10 | WG2222010002 | 1 | Oil cooler interface cover |
| 11 | Q1461035 | 4 | Hex Head Bolt, Spring Washer and Flat Washer Assemblies |
| 12 | WG2229010001 | 4 | dowel pin |
| 13 | WG2229010010 | 1 | stop screw |
| 14 | WG2222010001 | 1 | idler cover |
| 15 | Q1421025 | 8 | Hex Head Bolt and Spring Washer Assembly |
| 16 | WG2203010002 | 1 | Oil drain plug assembly |
| 17 | WG2229010005 | 1 | Shift damping spring seat |
| 18 | WG2229010011 | 1 | Auxiliary box fork shaft locking pin |
| 19 | Q1421040 | 23 | Hex Head Bolt and Spring Washer Assembly |
